Algo :: automaticUVMapping

Synopsis

Generates the texture coordinates and automatically cut

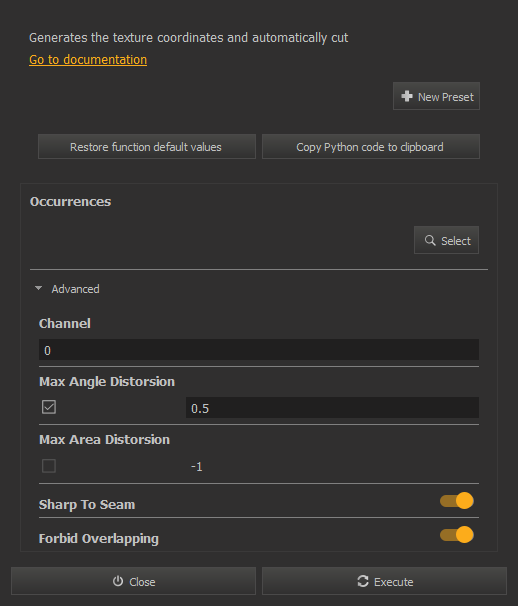

GUI Dialog

Script function

algo.automaticUVMapping(occurrences[, channel[, maxAngleDistorsion[, maxAreaDistorsion[, sharpToSeam[, forbidOverlapping]]]]])

Parameters

   occurrences (OccurrenceList) : Occurrences of part to process
   channel (Int) [optional] : The UV channel which will contains the texture coordinates
   maxAngleDistorsion (Double) [optional] : Maximum angle distorsion |2PI-SumVtxAng|/2PI
   maxAreaDistorsion (Double) [optional] : Maximum area distorsion before scale to 1. |2DArea-3DArea|/3DArea
   sharpToSeam (Bool) [optional] : If enabled, sharp edges are automatically considered as UV seams
   forbidOverlapping (Bool) [optional] : If enabled, UV cannot overlap
