The Product Structure offers actions accessible from contextual menus (right-click).
Depending if one occurrence, multiple occurrences or no occurrence is/are selected, the contextual menu is different:
With nothing Selected
Menu option
|
Description
|
Keyboard Shortcut
|
Show All
|
Shows all the occurrences of the tree, by setting each occurrence of the tree visibility (or "Visible" property) to "Inherited" value
|
|

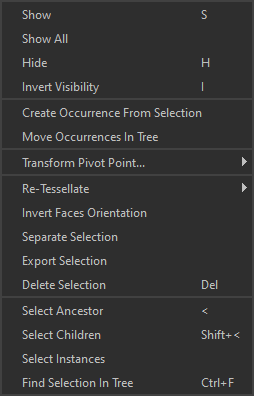

With one Occurrence Selected
Menu option
|
Description
|
Keyboard Shortcut
|
Show
|
Shows the selected occurrences, by setting each selected occurrence visibility (or "Visible" property) to "True" value
|
S
|
Show All
|
Shows all the occurrences of the tree, by setting each occurrence of the tree visibility (or "Visible" property) to "Inherited" value
|
|
Hide
|
Hides the selected occurrences, by setting each selected occurrence visibility (or "Visible" property) to "False" value
|
H
|
Invert Visibility
|
Inverts the selected occurrences visibility (setting the "Visible" property value to "False" or "True" depending on its original visibility)
|
I
|
Create Occurrence From Selection
|
Creates a new occurrence parenting the occurrences being selected, in order to group them
|
|
Move Occurrences In Tree
|
Moves the selected occurrences in the tree by parenting them to the "Destination" occurrence
TIP This action can be performed interactively from the Product Structure by drag-and-dropping the selected occurrences where desired in the tree
|
|
Transform Pivot Point...
|
Used to manage the pivot point of the selected occurrences
|
|
Re-Tessellate
|
Lists functions used to manage re-tessellation capabilities
|
|
Invert Faces Orientation
|
Inverts the orientation of the mesh faces of the selected occurrences
|
|
Separate Selection
|
Creates a new Part out of a selection of sub-meshes (patches, polygons…)
|
|
Export Selection
|
Exports the selected occurrences to a supported file format
|
|
Delete Selection
|
Deletes the selected occurrences
|
DEL
|
Select Ancestor
|
Selects the first common ancestor of the current selection
|
<
|
Select Children
|
Selects the children for each occurrence of the current selection
|
> (SHIFT + <)
|
Select Instances
|
Selects all the instances of the currently selected occurrence (providing it is instantiated multiple times in the scene)
|
|
Find Selection In Tree
|
Highlights and focuses the view on the selected occurrence(s) in the Product Structure
|
CTRL+F
|

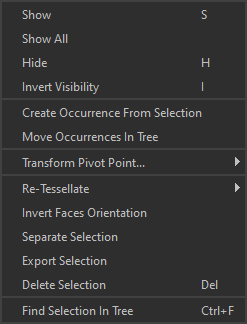

With Multiple Occurrences Selected
Menu option
|
Description
|
Keyboard Shortcut
|
Show
|
Shows the selected occurrences, by setting each selected occurrence visibility (or "Visible" property) to "True" value
|
S
|
Show All
|
Shows all the occurrences of the tree, by setting each occurrence of the tree visibility (or "Visible" property) to "Inherited" value
|
|
Hide
|
Hides the selected occurrences, by setting each selected occurrence visibility (or "Visible" property) to "False" value
|
H
|
Invert Visibility
|
Inverts the selected occurrences visibility (setting the "Visible" property value to "False" or "True" depending on its original visibility)
|
I
|
Create Occurrence From Selection
|
Creates a new occurrence parenting the occurrences being selected, in order to group them
|
|
Move Occurrences In Tree
|
Moves the selected occurrences in the tree by parenting them to the "Destination" occurrence
TIP This action can be performed interactively from the Product Structure by drag-and-dropping the selected occurrences where desired in the tree
|
|
Transform Pivot Point...
|
Lists functions used to manage the pivot point of the selected occurrences
|
|
Re-Tessellate
|
Lists functions used to manage re-tessellation capabilities
|
|
Invert Faces Orientation
|
Inverts the orientation of the mesh faces of the selected occurrences
|
|
Separate Selection
|
Creates a new Part out of a selection of sub-meshes (patches, polygons…)
|
|
Export Selection
|
Exports the selected occurrences to a supported file format
|
|
Delete Selection
|
Deletes the selected occurrences
|
DEL
|
Find Selection In Tree
|
Highlights and focuses the view on the selected occurrence(s) in the Product Structure
|
CTRL+F
|
