Scene types


AlternativeTree

Definition

   Type AlternativeTree is inherited from Entity

Description

   An AlternativeTree is an alternative product structure tree

GUI Widget


AlternativeTreeList

Definition

   Type AlternativeTreeList is a list of AlternativeTree

AnimChannel

Definition

   Type AnimChannel is inherited from Entity

Description

   A container of AnimCurves

GUI Widget


AnimChannelList

Definition

   Type AnimChannelList is a list of AnimChannel

Animation

Definition

   Type Animation is inherited from Entity

Description

   An Animation allows to animate several properties through several AnimPropertyBinder

GUI Widget


AnimationList

Definition

   Type AnimationList is a list of Animation

AnimationTime

Definition

   Type AnimationTime is inherited from Long

GUI Widget


BRepShape

Definition

   Type BRepShape is inherited from Shape

Description

   A BRepShape is a Shape that contains BRep geometry

GUI Widget


Camera

Definition

   Type Camera is a structured type composed of these fields :

GUI Widget


Component

Definition

   Type Component is inherited from Entity

Description

   A component add behavior to an occurrence

GUI Widget


ComponentList

Definition

   Type ComponentList is a list of Component

ComponentType

Definition

   Type ComponentType is an enumeration type composed of these values :

GUI Widget


DirectionalLight

Definition

   Type DirectionalLight is inherited from Entity

Description

   A Directional Light is a light which emit in one direction (mostly used as sky lighting)

GUI Widget


Filter

Definition

   Type Filter is a structured type composed of these fields :

GUI Widget


FilterExpression

Definition

   Type FilterExpression is inherited from String

Description

   A filter expression (see documentation)

GUI Widget


FilterList

Definition

   Type FilterList is a list of Filter

JointComponent

Definition

   Type JointComponent is inherited from Component

Description

   A joint for rigged animations

GUI Widget


Keyframe

Definition

   Type Keyframe is inherited from Entity

Description

   A keyframe to interpolate an AnimCurve from

GUI Widget


KeyframeList

Definition

   Type KeyframeList is a list of Keyframe

Light

Definition

   Type Light is inherited from Entity

Description

   A Light is a an entity, can be positional, spot or directional

GUI Widget


LightComponent

Definition

   Type LightComponent is inherited from Component

Description

   A LightComponent is a component that add a light behavior to an occurrence

GUI Widget


MergeHiddenPartsMode

Definition

   Type MergeHiddenPartsMode is an enumeration type composed of these values :

GUI Widget


Metadata

Definition

   Type Metadata is inherited from Component

Description

   A metadata is a component that contains all metadata properties of an occurrence

GUI Widget


MetadataDefinition

Definition

   Type MetadataDefinition is inherited from PropertyValueList

Description

   All properties of a metadata component

GUI Widget


MetadataDefinitionList

Definition

   Type MetadataDefinitionList is a list of MetadataDefinition

MetadataList

Definition

   Type MetadataList is a list of Metadata

Occurrence

Definition

   Type Occurrence is inherited from GeomEntity

Description

   An occurrence is the main type of node in the product structure, it can have children and prototypes

GUI Widget


OccurrenceList

Definition

   Type OccurrenceList is a list of Occurrence

OccurrenceListList

Definition

   Type OccurrenceListList is a list of OccurrenceList

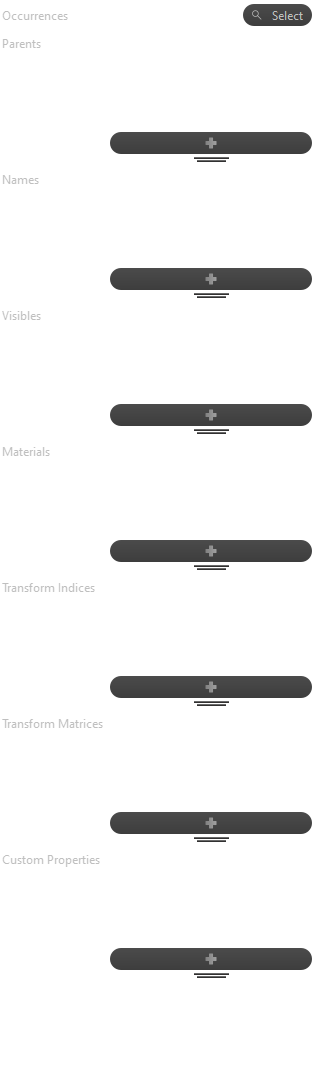

PackedTree

Definition

   Type PackedTree is a structured type composed of these fields :

Description

   Packed view of the scene tree

GUI Widget


Part

Definition

   Type Part is inherited from Component

Description

   A part is the geometrical definition of product occurrence

GUI Widget


PartList

Definition

   Type PartList is a list of Part

PositionalLight

Definition

   Type PositionalLight is inherited from Entity

Description

   A Positional Light is a light positioned in the space which emit in all directions

GUI Widget


Primitive_Type

Definition

   Type Primitive_Type is an enumeration type composed of these values :

GUI Widget


ProberInfo

Definition

   Type ProberInfo is a structured type composed of these fields :

GUI Widget


PropertyValue

Definition

   Type PropertyValue is a structured type composed of these fields :

Description

   A structure containing a property name and its value

GUI Widget


PropertyValueList

Definition

   Type PropertyValueList is a list of PropertyValue

Description

   list of PropertyValue

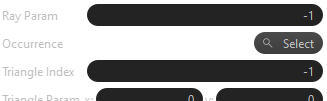

RayHit

Definition

   Type RayHit is a structured type composed of these fields :

GUI Widget


RayHitList

Definition

   Type RayHitList is a list of RayHit

ResizeByMaximumSizeOptions

Definition

   Type ResizeByMaximumSizeOptions is a structured type composed of these fields :

GUI Widget


ResizeByOccurrencesOptions

Definition

   Type ResizeByOccurrencesOptions is a structured type composed of these fields :

GUI Widget


ResizeByRatioOptions

Definition

   Type ResizeByRatioOptions is a structured type composed of these fields :

GUI Widget


ResizeByTexturesOptions

Definition

   Type ResizeByTexturesOptions is a structured type composed of these fields :

GUI Widget


ResizeTexturesInputMode

Definition

   Type ResizeTexturesInputMode is a select type composed of these choices :

GUI Widget

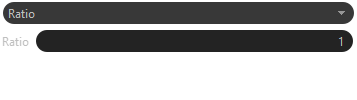

ResizeTexturesResizeMode

Definition

   Type ResizeTexturesResizeMode is a select type composed of these choices :

GUI Widget


Shape

Definition

   Type Shape is inherited from GeomEntity

Description

   A Shape is the geometrical representation of a Part. It can be BRep or polygonal

GUI Widget


SpotLight

Definition

   Type SpotLight is inherited from Entity

Description

   A Positional Light is a light positioned in the space which emit in a cone

GUI Widget


TessellatedShape

Definition

   Type TessellatedShape is inherited from Shape

Description

   A TessellatedShape is a Shape that contains Polygonal geometry

GUI Widget


Variant

Definition

   Type Variant is inherited from Entity

Description

   A variant allows to override some occurrences properties

GUI Widget


VariantComponent

Definition

   Type VariantComponent is inherited from Component

Description

   A variant component is a component that contains variant definitions for an occurrence

GUI Widget


VariantComponentList

Definition

   Type VariantComponentList is a list of VariantComponent

VariantDefinition

Definition

   Type VariantDefinition is a structured type composed of these fields :

GUI Widget


VariantDefinitionList

Definition

   Type VariantDefinitionList is a list of VariantDefinition

VariantDefinitionListList

Definition

   Type VariantDefinitionListList is a list of VariantDefinitionList

VariantList

Definition

   Type VariantList is a list of Variant

VisibilityMode

Definition

   Type VisibilityMode is an enumeration type composed of these values :

GUI Widget
