Unwrap UV

API function: algo.unwrapUV

Considering a set of UV islands (defined either by existing UV coordinates or by lines of interest over the mesh surface), this function generates UV coordinates by flattening each 3D surface patch corresponding to an island onto the Euclidean plane while minimizing a distortion criterion between both 3D and UV spaces.

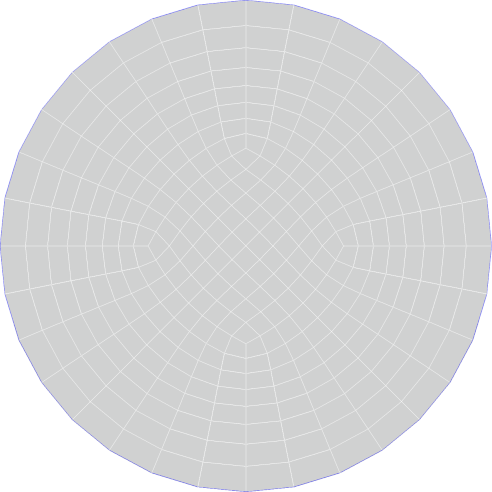

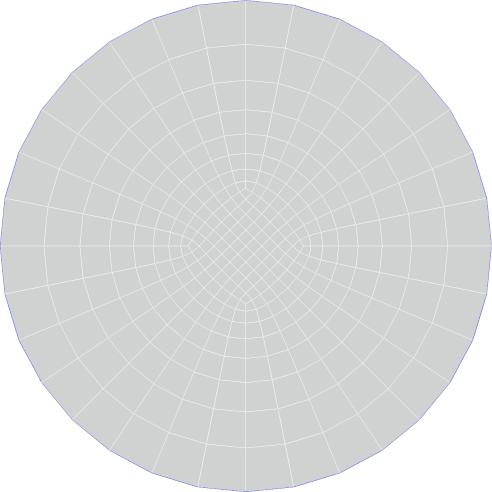

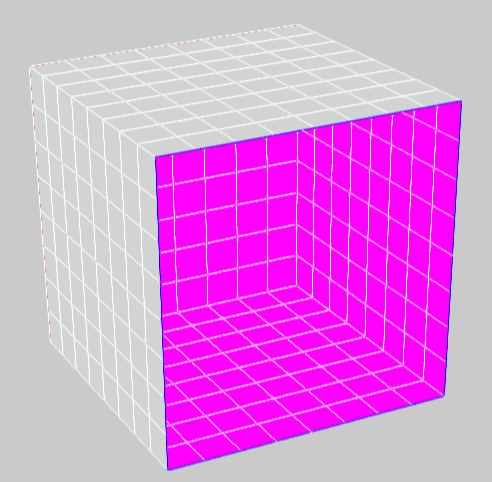

An open cube to unwrap	Isometric unwrapping (edge length preserving)	Conformal unwrapping (angle preserving)

Warning

This function only unwraps UV islands, but doesn't pack texture coordinates into the unit square. To do so, you must call algo.repackUV afterwards.

Parameters

Occurrences

List of occurrences to process.

Method

Determines the type of solver used for unwrapping (using the enum algo.UnwrapUVMethod):

• Isometric: minimizes edge length distortions using ARAP solver.
• Conformal: minimizes face angle distortions using ABF++ solver.

Channel

UV channel to run the unwrapping on. If lines of interest are used, the channel corresponds to the destination where the new UV coordinates are stored.

Create seams from LoI

If checked, UV islands are created by considering lines of interest as boundaries (in other words, as cutting lines over the mesh surface). Otherwise, islands defined by existing UV coordinates are used.

Lines of interests can be computed by algo.segmentMesh, for instance.

Iter max

Solver stopping criterion: maximum number of iterations allowed.

Tolerance

Solver stopping criterion: error threshold.
