Remove occluded geometries – advanced processing

API function: algo.removeOccludedGeometriesAdvanced

To reduce the polygon count of mesh models and optimize them for exterior and interior viewing, you can delete geometries that can’t be viewed from various viewpoints:

The outside of models
Interior spaces, such as cockpits and house interiors

For example, some parts may be completely concealed by others. You can delete these parts without affecting the appearance of models from the outside or interior spaces.

This processing proves particularly efficient on these models:

Models that have internal parts
Models that have been designed as solids
Models that have been designed using CAD software

Note

To process scenes faster and optimize them only for exterior viewing, use standard processing instead. Read more.

Smart processing takes longer than standard processing, but is more precise. You can better preserve meshes, especially self-occluding meshes and highly detailed meshes.

The more detailed the processing, the better the final quality, but the longer the scene takes to process and the less the polygon count decreases.

To reduce the polygon count while preserving visual quality, you can set various parameters:

The granularity level at which to process the scene – namely parts, patches, or polygons
Whether to optimize the scene for exterior viewing, interior viewing, or both
The minimum volume of interior spaces to be preserved
Camera parameters, such as the number of cameras and the image resolution
Whether to preserve the neighboring polygons of captured polygons, to avoid apparent gaps
Whether to preserve geometries that can be viewed through transparent materials, such as windows

Parameters

Occurrences

You can process the whole scene or part of it.

You don't need to process the areas that hide others, because these are already taken into account as potential occluders.

By definition, geometries whose Visible property is set to False aren't processed.

Geometries whose Visible property is set to True are processed as follows:

Selected geometries can be deleted and are used to determine the placement of cameras.
Unselected and selected geometries are all potential occluders.

Granularity level

Choose the granularity level at which to process the scene:

Type	Use
Part	For clean optimization, that is, to avoid apparent gaps, process the scene at the level of parts.
Patch Polygon	To focus on reducing the polygon count, process the scene at the level of patches or polygons.

Minimum volume of interior spaces

You can set the minimum volume of interior spaces that you want to preserve. The smaller the value, the more viewpoints there are, but the longer the processing.

For example, to preserve furniture in a room but delete the inside of furniture, specify a volume that's slightly lower than the room volume.

Cameras

Placement

To simulate a 360° virtual tour, virtual cameras capture the scene according to its topology. The geometries that can’t be captured are deleted.

The selected meshes are voxelized and one camera is placed per voxel face.

The geometries whose Visible property is set to False are ignored so that cameras are placed only around the geometries to be rendered.

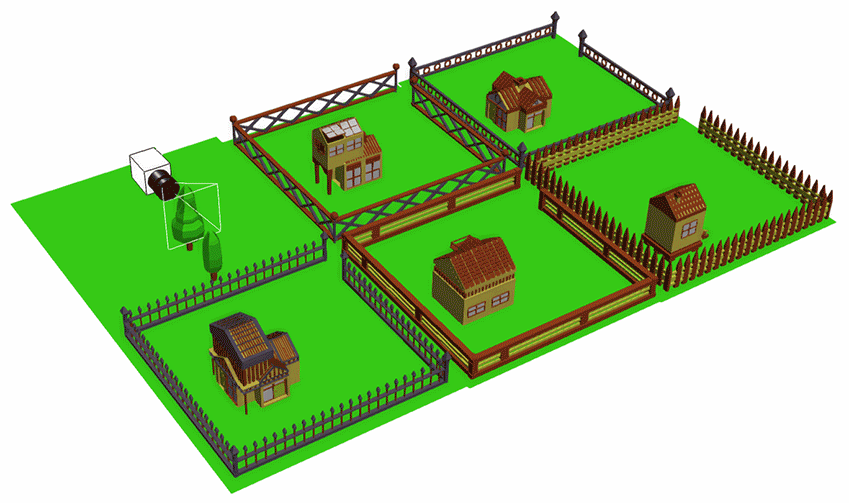

This example illustrates how this feature captures the scene to delete occluded geometries without damaging outer surfaces:

Cameras check the visibility of geometries from different viewpoints.

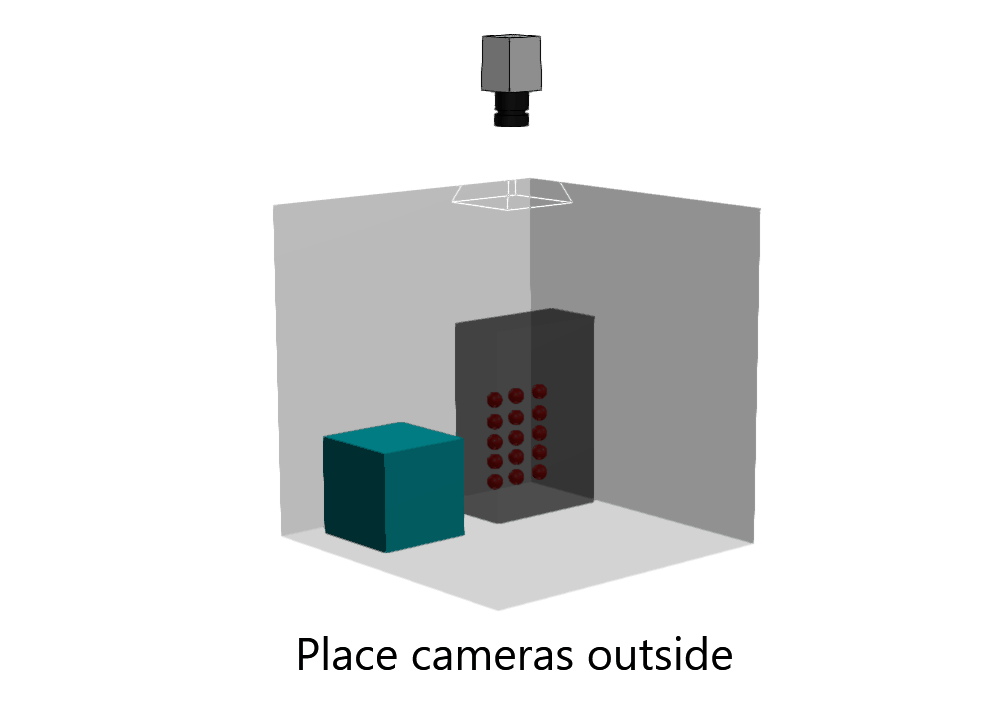

This example illustrates the placement of cameras on voxel faces:

Cameras are placed at specific viewpoints, outside and inside the scene.

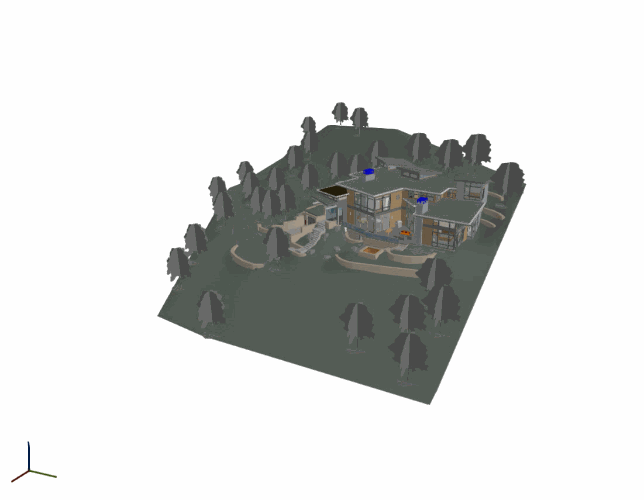

This example illustrates voxelization with different voxel sizes:

For example, a single voxel may surround the scene or several voxels may compose the scene.

The smaller the voxel, the more precise the results, but the longer the processing time. The voxel size equals the distance between cameras, because one camera is placed per voxel face.

We recommend that you test different voxel sizes using the occluded geometries selection feature before deleting occluded geometries.

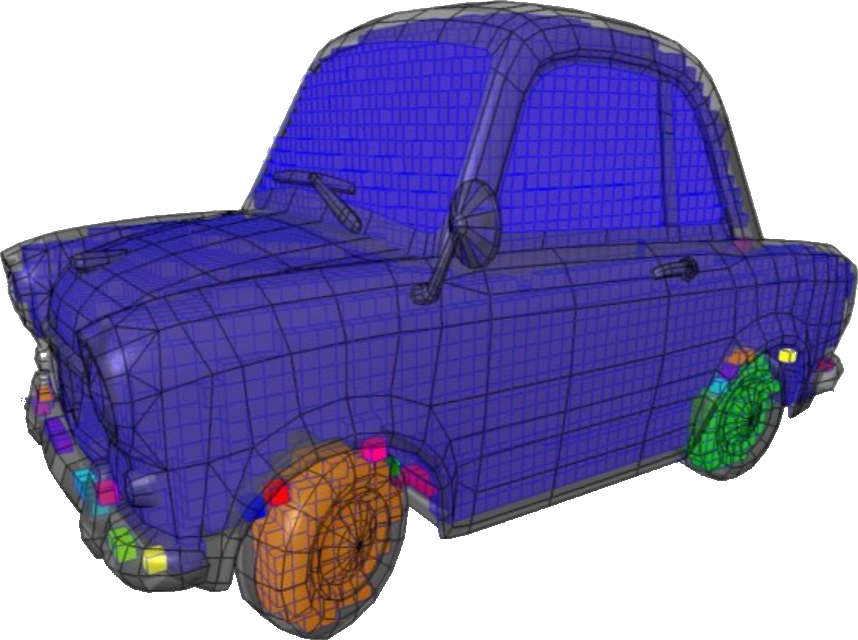

This example illustrates a car model that's voxelized with small voxels. Small interior spaces are identified behind bumpers and around wheels:

Each color represents a different cavity

Resolution

Image resolution also affects how geometries are captured by cameras. The higher the resolution, the longer the processing time, but the more pixels are generated. As a result, smaller polygons are captured and preserved.

If viewers get close to the model, increase the resolution to preserve visual quality from up close. If viewers are far from the model, use low resolution.

For smart processing, because cameras are close to the mesh, you can use a low resolution of 256 pixels.

Neighboring polygons

If you process the scene at the polygon level, you can preserve the neighboring polygons of captured polygons, to avoid apparent gaps. This table shows the most common options:

Adjacency depth	Neighboring polygons that are preserved	Example of use
0	None	Viewers are far from the model. You want to focus on reducing the polygon count.
1	Adjacent polygons	Viewers get closer to the model. You want to avoid apparent gaps.
2	Adjacent polygons and their adjacent polygons

This example illustrates how this parameter affects meshes:

The higher the adjacency depth value, the smaller the gaps in meshes. On this model, an adjacency depth of 2 is enough to avoid any gap.

Transparency

You can preserve geometries that can be viewed through transparent materials, such as windows and windshields.

In this example, the internal parts that can be viewed through transparent material are deleted.
