Re-Tessellate

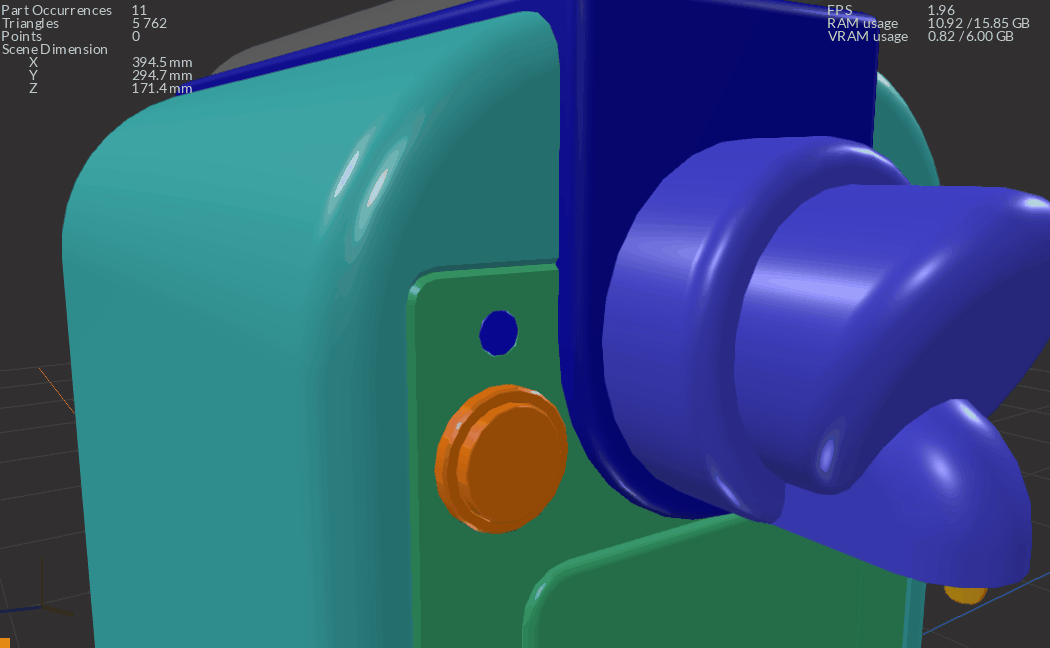

Models that contain BRep surfaces (CAD models) can be re-tessellated directly in the scene without having to import the model all over again. Re-Tessellate allows you to fine-tune tessellation quality of entire models or individual parts in the scene.

See About Tessellation.

Condition

Parts can be re-tessellated providing they were originally tessellated with Pixyz Studio, using the Tessellate function, and with the parameter Keep BRep Shape enabled.

Notes

Here are a few important notes when re-tessellating parts:

• Refining the tessellation parameters values will produce smoother surfaces on your model, but also increase polycount and the scene file size
• When re-tessellating, meshes are entirely recreated, so actions like mesh repair, face orientation corrections and UVs generation need to be executed again on the newly created mesh. So, it is advised to fine-tune tessellation quality right after import and initial tessellation, prior to moving on to fixing and optimizing meshes.
• When clicking one of the Re-Tessellate actions, it's the Tessellate dialog box that is opened, and the parameter Override Existing Tessellation is forced.

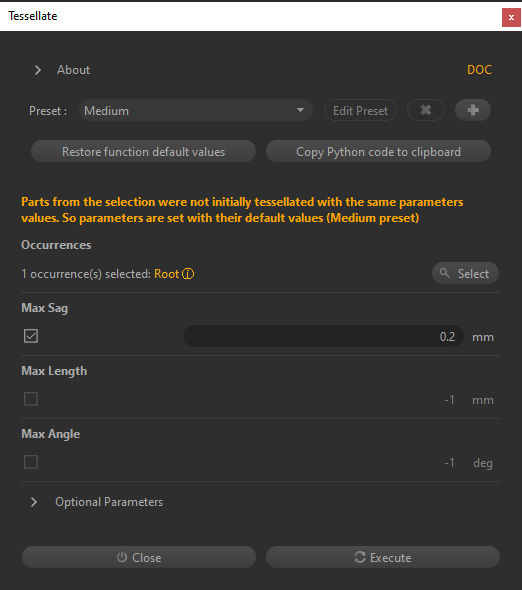

• In order to help fine-tuning tessellation precisely, initial tessellation parameters are stored for each mesh of the scene. When opening the Tessellate dialog box, parameters values are automatically adjusted to the selection's initial tessellation values, providing the selected parts share the same initial tessellation value. Otherwise, the Medium preset is automatically set, and a message is raised in the interface, in orange:

How to

To re-tessellate, follow these steps:

• Select a part, or a selection of parts you wish to re-tessellate using the the Viewer or the Product Structure.
• Open the Re-Tessellate dialog box:
  • From the CAD menu
  • From the Re-Tessellate menu accessible from a right-click in the Viewer
  • From the Inspector, using the Re-Tessellate button in the Part component
• In the Tessellate dialog box, change the tessellation parameters (see About Tessellation for more information about the parameters)
• Click Execute

Messages

Pre-process message box

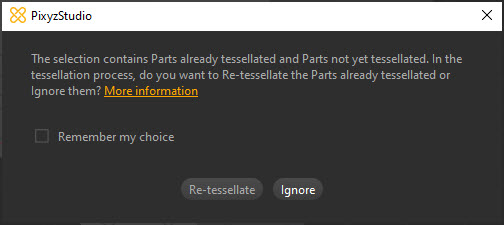

Depending on the nature of the selection, and after clicking one of the Re-Tessellate actions, a first message box can be displayed before opening the Tessellate dialog box, asking you how to process parts that were already tessellated:

• Re-tessellate: All parts of the selection already tessellated before are re-tessellated, and non-tessellated parts are tessellated, with the parameters you define in the Tessellate dialog box.
• Ignore: Parts of the selection that are already tessellated are ignored: only non-tessellated parts are tessellated, with the parameters you define in the Tessellate dialog box.

Warnings in the dialog box

Depending on the nature of the selection, a warning message can be displayed in the function dialog box, explaining how/if the selection is affected by the re-tessellation process.
