XML File

User Interface creation

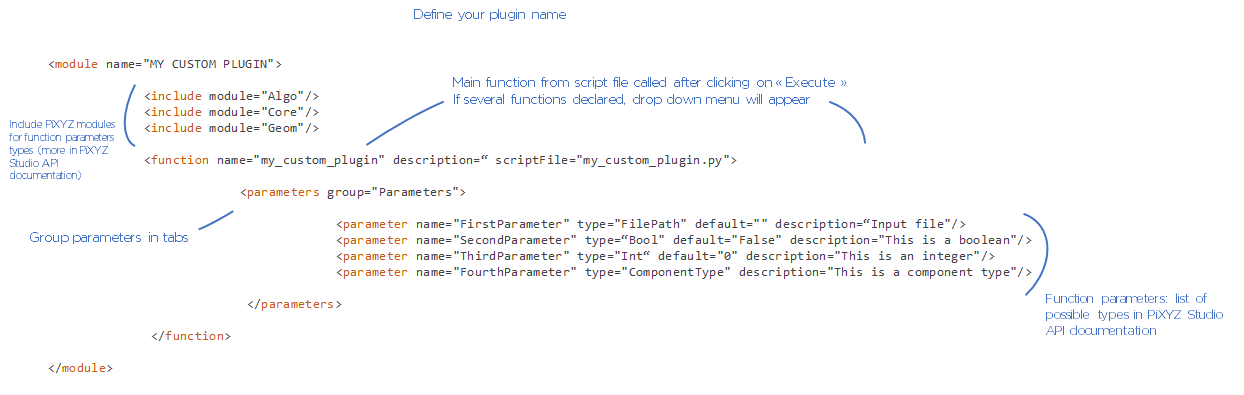

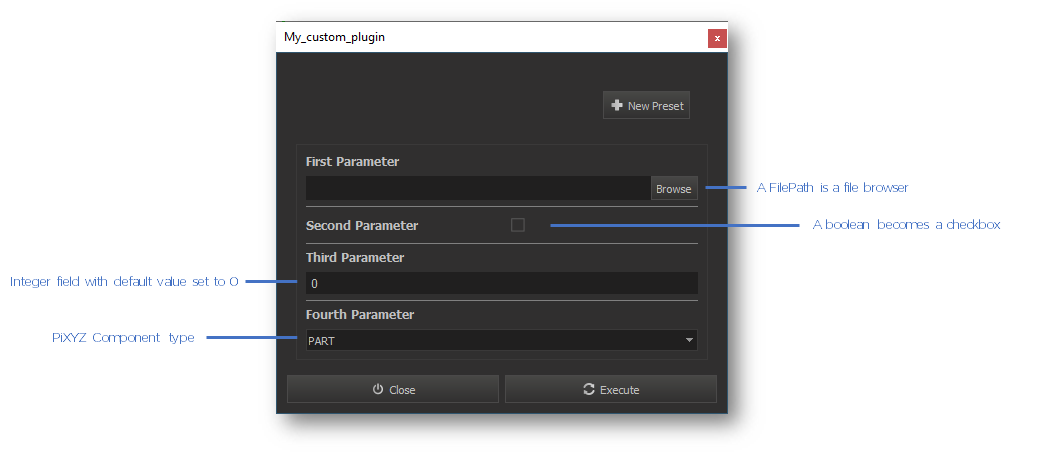

A plugin User InterfaceI is defined in an XML file. Here is a basic example:



More about Types

Parameter types

Please refer to the API Reference or the Function List to find all the parameter types available in the Python API, and to see a preview of the associated GUI widget.

Structures

Declare your own structured types using the decltype and struct keywords:

<decltype name="Structure">
    <struct>
        <field name="BoolParameter" type="Bool" default="True"/>
        <field name="AngleParameter" type="Angle" default="0.1"/>
    </struct>
</decltype>
…

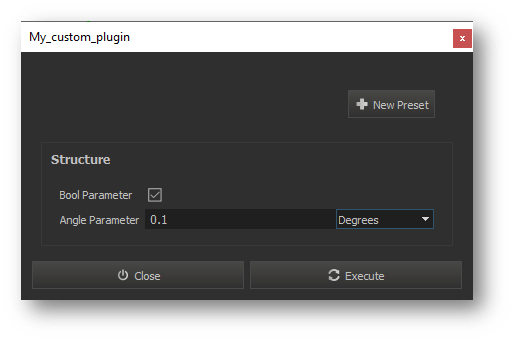

<parameter name="Structure" type="Structure" description=""/>


Lists

Some types also exist as lists (e.g String and StringList). Declare your own lists of structured types using the decltype and list keywords:

<decltype name="Structure">
    <struct>
        <field name="BoolParameter" type="Bool" default="True"/>
        <field name="AngleParameter" type="Angle" default="0.1"/>
    </struct>
</decltype>
…
<decltype name="StructureList">
    <list type ="Structure"/>
</decltype>
…

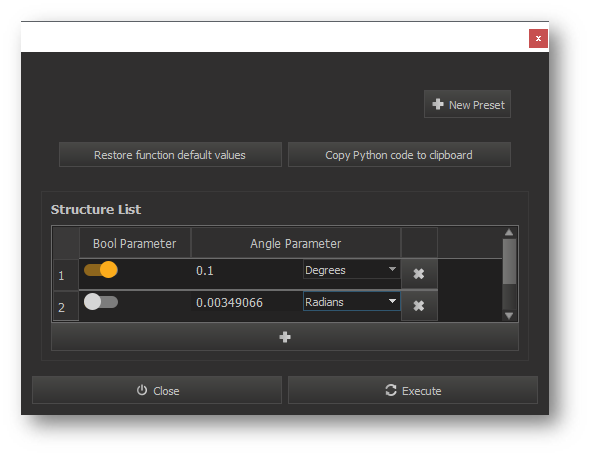

<parameter name="structureList" type="StructureList" description=""/>


Enumerators

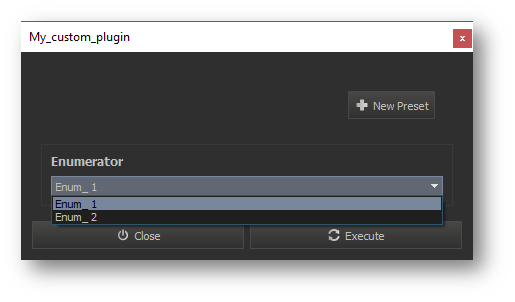

Declare Enumerator types using the enum keyword. Enumerators take the form of dropdown menus:

<decltype name="Enumerator">
    <enum type="Int">
      <value name="Enum_1" value="1"/>
      <value name="Enum_2" value="2"/>
    </enum>
 </decltype>
…
<parameter name="Enumerator" type="Enumerator" description=""/>


Selectors

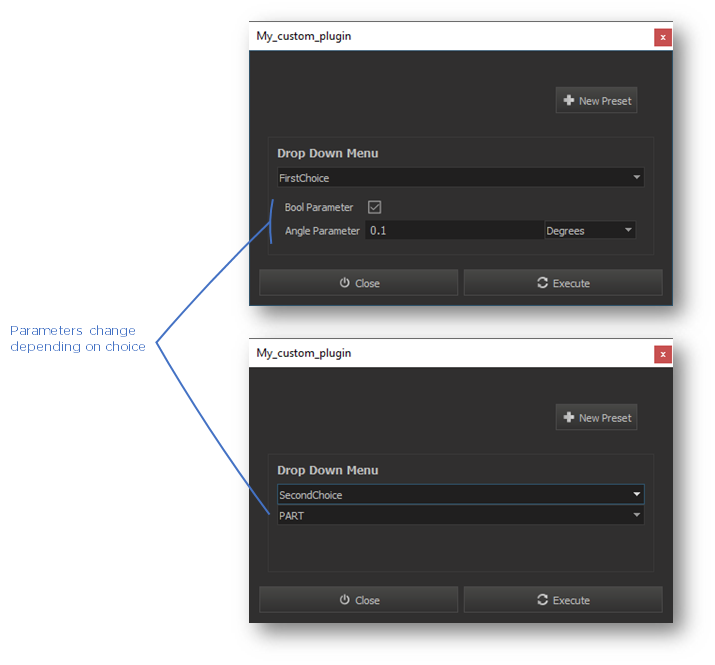

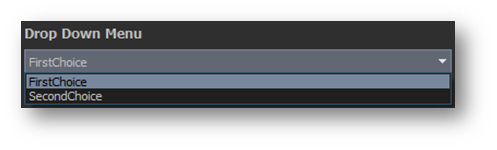

Use the select keyword to create dropdown selection menus giving inputs choice:

<decltype name="DropDownMenu">
    <select>
      <type name="FirstChoice" type="Structure"/>
      <type name="SecondChoice" type="ComponentType"/>
    </select>
</decltype>
…
<parameter name="dropDownMenu" type="DropDown" description=""/>



Advanced use cases

  • Optional parameters: optional="True"

    <parameter name="OptionalParameter" type="OutputDirectoryPath" optional="True" description=""/>

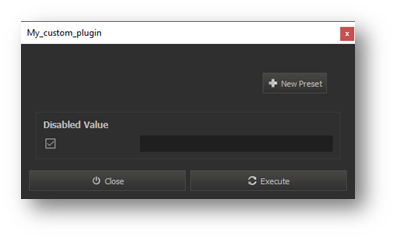

  • Disabled parameters: disableValue="-1"

    <parameter name="DisabledValue" type="Int" disableValue="-1" description=""/>

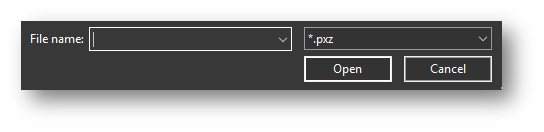

  • Customize FilePath type so it browses only specified formats:

    <decltype name="InputFilePath" type="FilePath" attributes="extensions:*.pxz"/>

…
<parameter name="input" type="InputFilePath" description=""/>

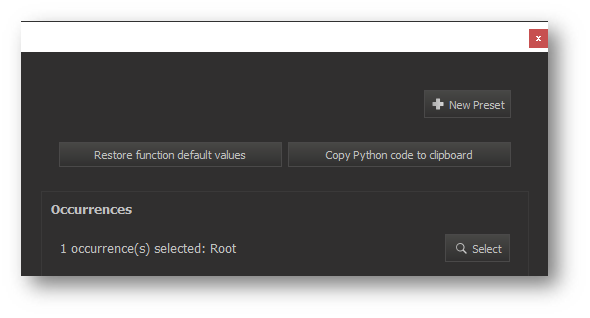

  • Selectable OccurrenceList parameters (input filled with current scene selection): selection="true"

    <parameter name="occurrences" type="OccurrenceList" selection="true"/>
