Material types

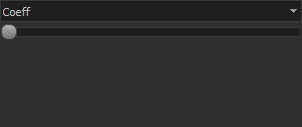

CoeffOrTexture

Definition

Type CoeffOrTexture is a select type composed of these choices :

coeff (Coeff)
texture (Texture)

GUI Widget

ColorMaterialInfos

Definition

Type ColorMaterialInfos is a structured type composed of these fields :

name (String)
color (ColorAlpha)

GUI Widget

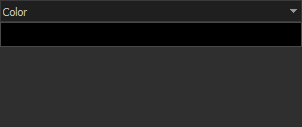

ColorOrTexture

Definition

Type ColorOrTexture is a select type composed of these choices :

color (Color)
texture (Texture)

GUI Widget

CustomMaterialPattern

GUI Icon

Definition

Type CustomMaterialPattern

is inherited from Entity

Description

A Custom MaterialPattern is an entity which defines an abstract custom Shader. It is used by the Materials

GUI Widget


GUI Icon

Definition

Type Image

is inherited from Entity

Description

An Image is an entity which represents an image in the Image library

GUI Widget

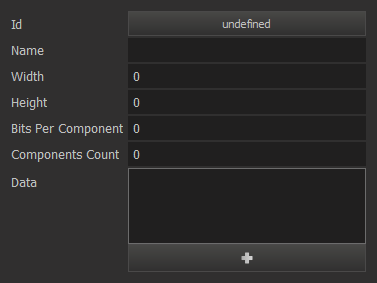

ImageDefinition

Definition

Type ImageDefinition is a structured type composed of these fields :

id (Image)
name (String)
width (Int)
height (Int)
bitsPerComponent (Int)
componentsCount (Int)
data (ByteList)

GUI Widget

ImageDefinitionList

Definition

Type ImageDefinitionList is a list of ImageDefinition

GUI Widget

ImageList

Definition

Type ImageList is a list of Image

GUI Widget

Material

GUI Icon

Definition

Type Material

is inherited from Entity

Description

The Material is an Entity that contains visual definition that can be applied to the Components of the scene

GUI Widget

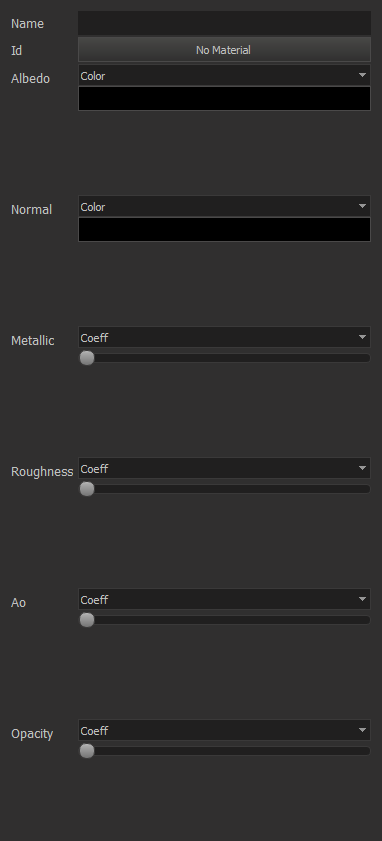

MaterialExtract

Definition

Type MaterialExtract is a structured type composed of these fields :

name (String)
id (Material)
albedo (ColorOrTexture)
normal (ColorOrTexture)
metallic (CoeffOrTexture)
roughness (CoeffOrTexture)
ao (CoeffOrTexture)
opacity (CoeffOrTexture)

GUI Widget

MaterialExtractList

Definition

Type MaterialExtractList is a list of MaterialExtract

GUI Widget

MaterialList

Definition

Type MaterialList is a list of Material

GUI Widget

MaterialPatternType

Definition

Type MaterialPatternType is an enumeration type composed of these values :

CUSTOM (0)
COLOR (1)
STANDARD (2)
UNLIT_TEXTURE (3)
PBR (4)

GUI Widget

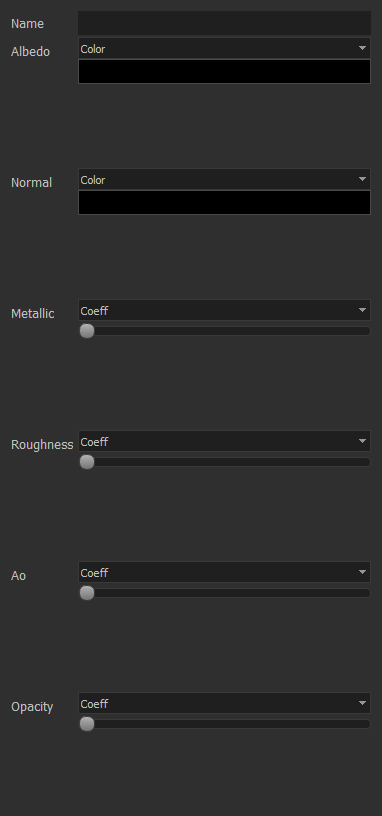

PBRMaterialInfos

Definition

Type PBRMaterialInfos is a structured type composed of these fields :

name (String)
albedo (ColorOrTexture)
normal (ColorOrTexture)
metallic (CoeffOrTexture)
roughness (CoeffOrTexture)
ao (CoeffOrTexture)
opacity (CoeffOrTexture)

GUI Widget

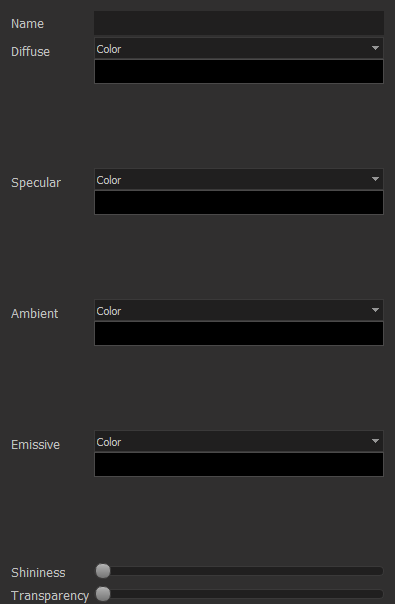

StandardMaterialInfos

Definition

Type StandardMaterialInfos is a structured type composed of these fields :

name (String)
diffuse (ColorOrTexture)
specular (ColorOrTexture)
ambient (ColorOrTexture)
emissive (ColorOrTexture)
shininess (Coeff)
transparency (Coeff)

GUI Widget

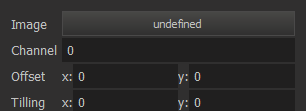

Texture

Definition

Type Texture is a structured type composed of these fields :

image (Image)
channel (Int)
offset (Point2)
tilling (Point2)

GUI Widget

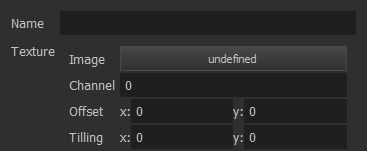

UnlitTextureMaterialInfos

Definition

Type UnlitTextureMaterialInfos is a structured type composed of these fields :

name (String)
texture (Texture)
